The Synexis Sphere
-
Provides DHP® coverage** in spaces up to 1,000 sq. ft.
Easy-to-access consumables to make routine maintenance simple.
-
The Sphere is wall-mountable or free-standing.
Plugs into a standard 120VAC/220VAC* power outlet.
*230V device available.
-
Sleek, light design
Convenient for targeted pathogen control in individual rooms and smaller spaces.
**Coverage varies by application and depends on factors such as typical indoor air contaminants, occupancy, and other variables. Please consult with Synexis technical experts to validate coverage
Device: The Synexis Sphere
- INSTALLATION
- Stand or Wall Mount
- TYPICAL COVERAGE*
- 1000 ft² / 93 m²
- INPUT VOLTAGE REQUIREMENTS
- 100-130V, 50/60 Hz
- ELECTRICAL CURRENT
-
0.75A
90 Watts - WEIGHT
- 14 lbs / 6.4 kg
- COLOR
- White and Gray
- MATERIALS
- Polycarbonate (PC)
- DIMENSIONS

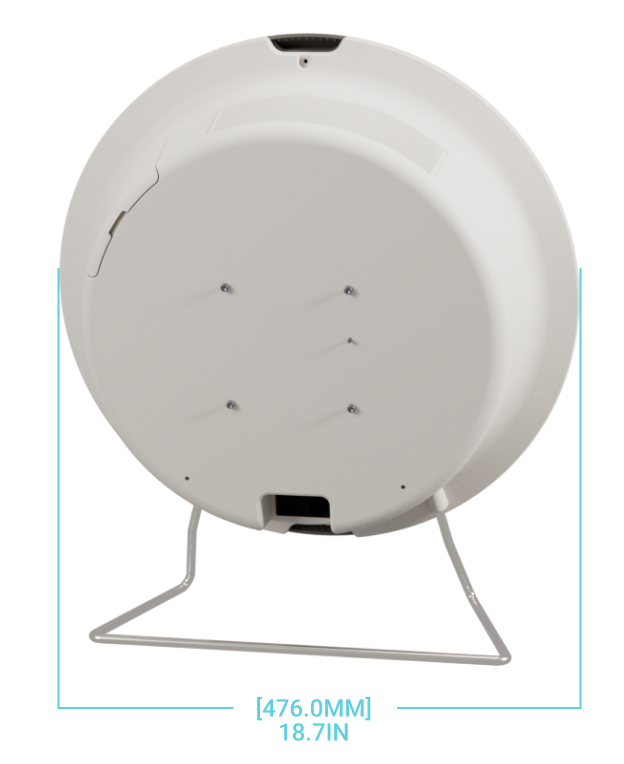

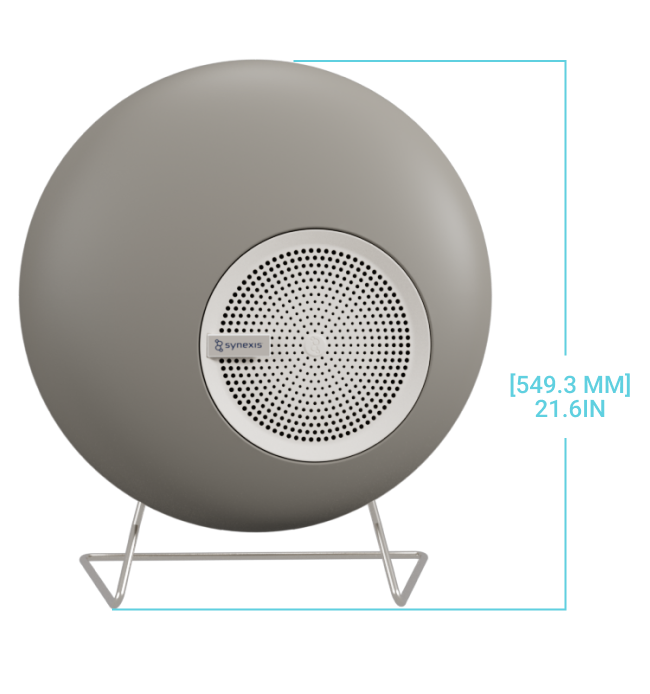

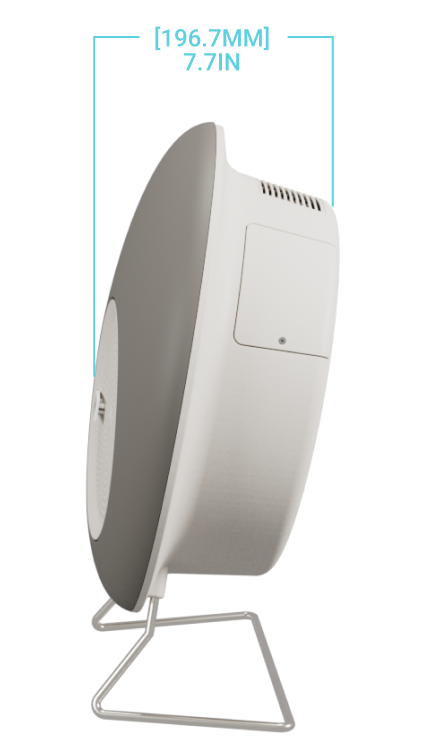

- Height: 21.6” | Width: 18.7” | Depth: 7.7”
- CONSUMABLE REPLACEMENTS*
-
6 Months:
- Catalyst (Sail)
- MERV 11 filter
- Carbon filter
- Fluorescent UV-A Bulb
*Coverage and consumable replacements vary by application and are dependent on factors such as typical indoor air contaminants, occupancy, and other variables. Please consult with Synexis technical experts to validate coverage and consumable replacements.
